Custom Foam Die Cutting Services for Precise Parts

A foam component can look simple on a drawing: a gasket, insert, pad, liner, or shaped absorber. Its performance, however, depends on far more than its outline. Custom foam die cutting services convert the right material into repeatable parts that fit an assembly, protect a product, manage sound, support a load, or control the flow of air and liquid.

For procurement teams and product designers, the goal is not merely obtaining a cut shape. It is specifying a component that performs consistently across production runs, stores efficiently, and arrives ready for installation. That requires the material, thickness, geometry, tooling, and finishing process to be considered together.

What Custom Foam Die Cutting Services Produce

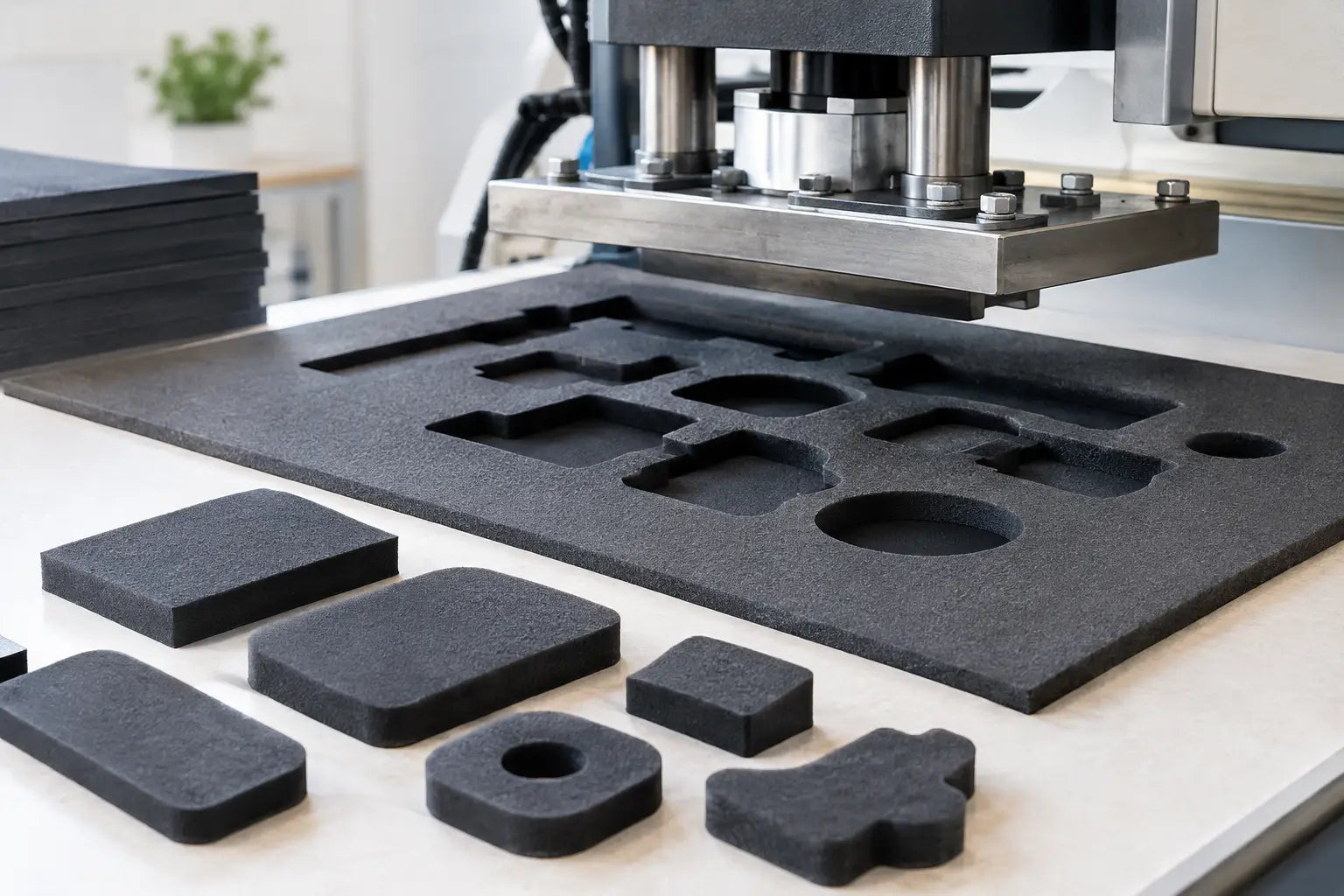

Die cutting uses a purpose-built cutting tool to stamp or press a defined shape from sheet, roll, or laminated foam and rubber-based material. The process is particularly effective for parts with a stable design and recurring demand: packaging inserts, spacer pads, sealing profiles, acoustic tiles, filtration discs, automotive components, protective corner pieces, and upholstery elements.

The die can create external profiles, internal holes, slots, kiss-cut pieces, and perforations in a single operation when the design and material allow it. This reduces manual trimming and helps maintain part-to-part consistency. For an installer, that can mean components align more quickly. For a manufacturer, it can reduce assembly variation and material waste.

Foam die cutting is not limited to soft polyurethane foam. Depending on the application, components may be produced from polyethylene foam, EVA, cross-linked expanded materials, open-cell foam, reticulated foam, rubber foam, or multilayer constructions. Each material family brings different behavior under compression, impact, temperature, moisture, and repeated use.

Material Selection Comes Before Tooling

A precise die cannot compensate for an unsuitable foam. The first decision is what the finished part must do under real operating conditions.

A protective packaging insert may require closed-cell polyethylene foam for impact resistance, low water absorption, and clean edges. A sound-control panel may use open-cell acoustic foam designed to absorb airborne sound rather than simply add thickness to a wall. A filter preform may need a reticulated structure with controlled porosity and drainage. A seating or mattress component needs a balance of density, firmness, resilience, and long-term comfort.

Thickness is equally important. A thicker foam is not automatically more protective, and a denser foam is not always more supportive. The correct choice depends on the load, available space, compression range, expected impacts, and recovery requirements. In a tight enclosure, a thin, higher-density material may be appropriate. In a returnable packaging system, a thicker cushioning structure may provide better protection over repeated shipping cycles.

Cioni Foams works across flexible foam, expanded plastics, and rubber-based materials because application requirements rarely fit one generic sheet material. Product families such as TecnoPe, TecnoGum, WaterCell, AirTec, and AcuTerm can be evaluated according to function: cushioning, sealing, drainage, acoustic performance, insulation, or protection.

Properties That Affect the Finished Component

Before a die is commissioned, define the properties that affect performance. These commonly include density, compression behavior, tensile strength, elongation, cell structure, water resistance, operating temperature, flame behavior, color, and surface finish. If the part will contact food, skin, cleaning chemicals, adhesives, or sensitive finishes, compatibility must also be reviewed.

For foam gaskets and sealing pads, compression set deserves special attention. A material that compresses easily but does not recover sufficiently may lose sealing force over time. For transport protection, rebound and energy absorption matter more than a visual impression of softness. For acoustic applications, the frequency range, installation gap, panel geometry, and room use can affect results as much as the foam itself.

From Drawing to Production-Ready Part

The most efficient custom foam die cutting services begin with a usable specification. A dimensioned drawing is helpful, but a complete request also identifies the material, thickness, quantity, intended use, acceptable tolerances, and any secondary operations.

Part geometry affects both the production method and the tool design. Tight internal corners, narrow bridges, small holes, and fragile details can behave differently in soft foam than in rigid plastic. A feature that appears straightforward in CAD may stretch, compress, or tear during cutting if the material is too soft or the geometry is too fine. In these cases, a design adjustment, alternate material, or different conversion method may provide a more reliable result.

Tolerances should be matched to the function of the part. Foam is compressible, and its dimensions can change slightly with material thickness, temperature, handling, and recovery after conversion. Extremely tight tolerances may be achievable for selected materials and shapes, but they can add cost without improving the finished product. A protective insert generally has different dimensional needs than a sealing component used in a controlled assembly.

A practical specification should also state whether the parts are supplied loose, in sheets, on rolls, stacked, bagged, labeled, or paired with other components. Packaging format is part of the manufacturing decision. It affects handling time, traceability, storage space, and line-side efficiency.

Choosing Die Cutting Versus Other Conversion Methods

Die cutting is often the strongest option for repeatable production volumes because tooling enables fast, consistent cycles. Once the die is established, it can produce a large number of identical components with efficient material use. It is particularly suited to flat parts and profiles made from sheet or roll stock.

It is not always the first method to use. For prototypes, very low quantities, frequent design changes, or highly complex shapes, waterjet cutting, CNC cutting, or other digital processes may be more economical because they avoid dedicated tooling. These methods can validate fit and material selection before a die is made.

The trade-off is straightforward. Digital cutting offers flexibility and speed during development, while die cutting usually becomes more favorable when the design is stable and volumes rise. A capable converter can help determine the crossover point based on part size, material yield, setup requirements, and forecast demand.

Lamination may be needed before cutting when a part combines different functions. A packaging component, for example, might combine a cushioning layer with a protective facing. An acoustic or insulation assembly may need adhesive backing for installation. Adhesive selection must account for the foam surface, the substrate, temperature exposure, humidity, and whether repositioning is required.

Tool Design, Yield, and Cost Control

A die-cut part price is influenced by more than the outline. Tooling complexity, material cost, sheet or roll dimensions, nesting efficiency, required tolerances, and post-cut operations all contribute. A small change to the layout can sometimes improve yield substantially, especially when a part is produced in high quantities.

Material yield refers to how much of the source sheet becomes usable product. Efficient nesting reduces scrap, but it must not compromise cut quality or leave insufficient spacing between parts. The best layout balances material usage with reliable stripping, handling, and output speed.

Tooling is an upfront investment, so it should be designed around a stable, approved part. If the product is still changing, prototype first. Once the geometry is confirmed, a production die supports repeatability and can simplify future ordering. Keeping the approved drawing, material reference, and tool identification tied together also helps prevent substitution errors during repeat runs.

Quality Checks That Matter in Foam Conversion

Quality control should reflect the component's end use. Dimensional inspection confirms key lengths, widths, diameters, hole locations, and thickness. Visual checks identify incomplete cuts, ragged edges, compression marks, contamination, and adhesive inconsistencies. For critical components, sample fitting or functional testing can provide useful confirmation before full production.

Material traceability is especially valuable where foam parts are used in regulated, safety-sensitive, or high-volume assemblies. The ability to connect a finished component to the specified material and conversion process supports repeatability when the order is reissued months later.

It is also sensible to establish approval samples for new projects. An approved sample gives designers, buyers, and production teams a shared reference for dimensions, feel, color, edge quality, and packaging. This is particularly useful when the foam is a visible part of a consumer product or when it interfaces with a finished surface.

Designing Better Parts With the Converter Involved Early

The best time to involve a foam converter is before the drawing is frozen. Early discussion can identify whether an existing material meets the requirement, whether a lower-cost thickness is sufficient, or whether a small geometric change will improve manufacturability. It can also clarify if the application needs die cutting alone or a combination of cutting, lamination, slitting, perforation, or packaging.

Bring the operating environment into that conversation. Explain whether the component will face vibration, moisture, oils, repeated compression, UV exposure, foot traffic, or shipment impacts. A foam part does not perform in isolation. It works inside a larger product, package, room, machine, or installation method.

A well-specified die-cut foam component saves effort after production begins. Start with the function, verify the material under realistic conditions, and approve the finished format that your assembly or customer will actually use. That is how a simple foam shape becomes a dependable production part.
