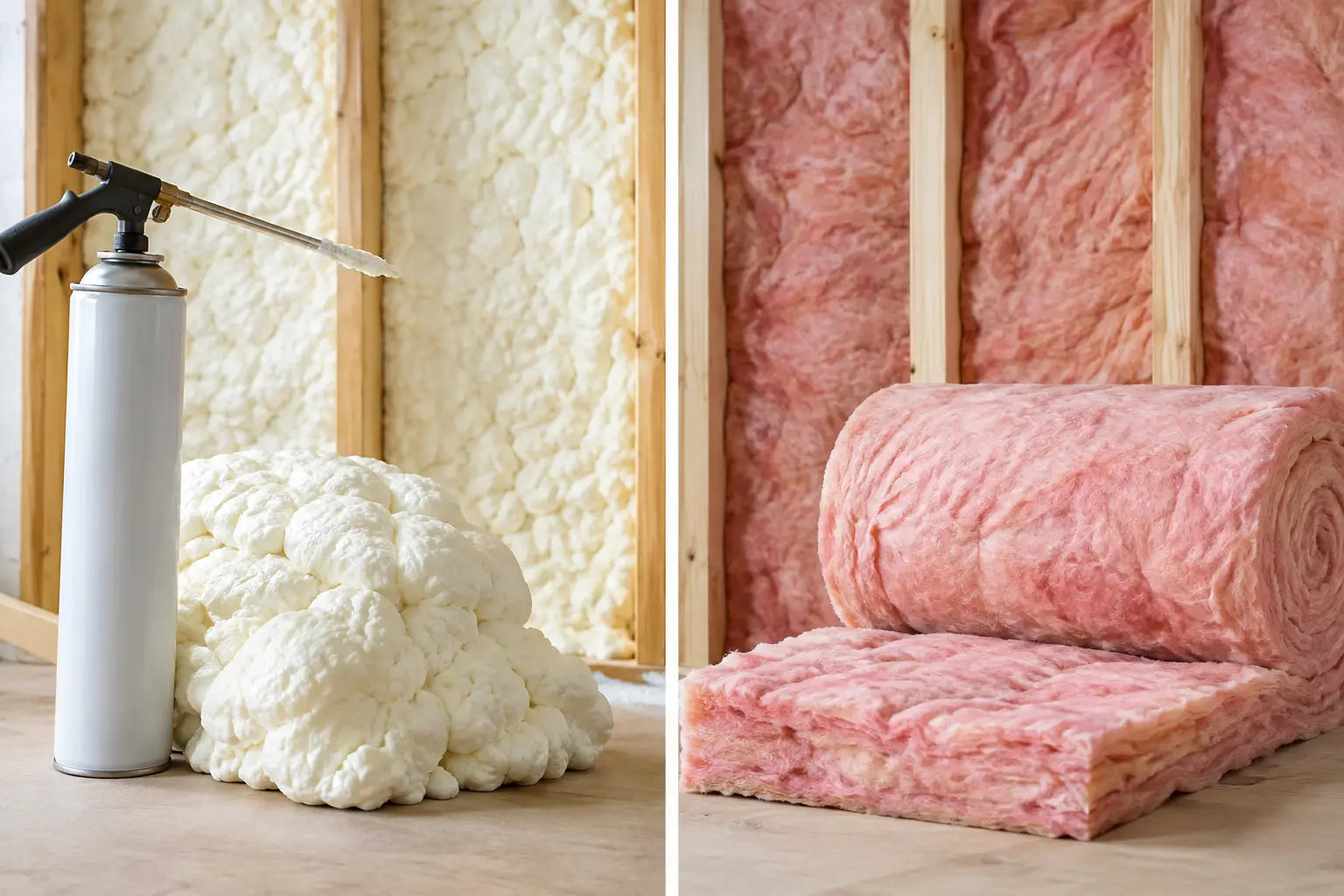

Foam Versus Fiberglass Insulation Compared

A wall cavity, a chilled-water pipe, and an acoustic enclosure do not create the same insulation problem. That is why foam versus fiberglass insulation should not be decided by R-value alone. The right material depends on the surface being insulated, available thickness, moisture exposure, operating temperature, fire requirements, installation conditions, and the performance the finished assembly must deliver.

For building walls and attics, fiberglass remains a familiar and cost-effective thermal insulation. For pipework, ductwork, compact technical assemblies, moisture-sensitive areas, and converted components, foam can offer advantages that go beyond thermal resistance. The specification needs to start with the application, then move to the material.

Foam Versus Fiberglass Insulation: The Core Difference

Fiberglass insulation is made from fine glass fibers formed into batts, rolls, boards, or loose-fill products. The fibers trap air, reducing heat flow. It is widely used in framed walls, ceilings, attics, and some HVAC systems because it is available in standard dimensions, can fill deep cavities effectively, and is typically economical for large areas.

Foam insulation is a broader material family. It can include rigid polyurethane or polyisocyanurate boards, spray foam, expanded polyethylene, elastomeric rubber foam, and other cellular materials. Each has a different cell structure, density, flexibility, vapor behavior, temperature range, and mechanical performance. Treating all foam as one product can lead to an inaccurate comparison.

Closed-cell foam materials generally resist liquid-water uptake better than open-fiber materials. They can also provide useful thermal performance in a thinner section, depending on the product. Flexible elastomeric and polyethylene foams are commonly selected for technical insulation because they conform around pipes, ducts, valves, and irregular profiles. Rigid foam boards, by contrast, are often used where a stable insulating layer is needed behind cladding, under slabs, or within roof and wall assemblies.

Thermal Performance Depends on the Installed Assembly

An insulation product’s declared thermal resistance is only one part of the result. Fiberglass can perform very well when it fully fills a cavity, stays dry, and is installed without compression, gaps, or air movement through the assembly. It is a logical choice where cavity depth is available and the construction system is designed around batts or blown insulation.

Foam is often selected where thickness is limited. A pipe insulation system may need to fit within a ceiling void. A refrigerated cabinet may require a thin insulating layer without sacrificing internal volume. A packaging or equipment enclosure may need insulation while also absorbing impact or accommodating a shaped component. In these cases, the ability to convert foam into sheets, rolls, tubes, gaskets, and custom-cut profiles becomes part of the engineering value.

Thermal bridges also matter. Studs, fasteners, joints, uninsulated penetrations, and compressed sections can bypass otherwise effective insulation. Continuous foam boards can help reduce bridging across a structural surface, while fiberglass is usually placed between framing members. Neither approach is automatically superior. The assembly must be detailed to control heat flow at the places where insulation stops or changes direction.

Compression Changes Results

Fiberglass loses effective thickness when compressed, which can reduce its thermal performance. Foam also needs to be selected for its compressive behavior. A soft flexible foam may be excellent around a curved pipe but unsuitable beneath a load-bearing floor. A higher-density expanded foam may carry more load but may not have the flexibility needed for a tight technical wrap.

Specify the actual installed thickness and the forces the material will experience, not only its nominal sheet thickness on a data sheet.

Moisture and Condensation Often Decide the Material

In a dry interior wall, moisture behavior may not be the deciding issue. Around cold pipes, air-conditioning ducts, chilled tanks, or marine equipment, it can be critical. Warm humid air that reaches a cold surface can condense. Over time, condensation can cause corrosion, reduced insulation performance, mold in surrounding construction, and damage to finishes.

Fiberglass itself does not absorb water in the same way as a sponge, but its open structure can retain moisture and lose insulating effectiveness when wet. Many fiberglass systems rely on facings, jackets, vapor retarders, and carefully sealed joints to manage vapor movement. If the facing is punctured or seams are poorly sealed, the system can be vulnerable in high-humidity applications.

Closed-cell foam can provide a more integrated barrier to moisture movement, particularly in elastomeric technical insulation designed for condensation control. Its closed cellular structure limits water vapor transmission relative to open-fiber insulation. Seams, ends, and penetrations still require correct sealing. Foam is not a substitute for careful installation, especially where continuous vapor control is required.

For exterior walls and roofs, moisture design must also account for the climate zone, wall layers, drainage plane, interior humidity, and drying potential. A material that works well around a pipe may not be the right choice for a wall assembly. Building-science requirements and local code requirements should guide the final design.

Fire Performance Requires Product-Level Review

Fire behavior should never be assumed from the word “foam” or “fiberglass.” Fiberglass is generally regarded as noncombustible, but binders, facings, vapor barriers, and the complete installed system can affect performance. Foam products are organic materials and may require protective coverings, thermal barriers, or specific tested assemblies depending on their use.

Some engineered foam materials include self-extinguishing characteristics, but that term does not mean a material is fireproof or suitable for every construction application. Flame spread, smoke development, operating temperature, facing materials, and relevant building or equipment standards must be reviewed at the product and assembly level.

This is particularly important in public buildings, transportation, marine applications, machinery enclosures, and HVAC installations. A technically suitable insulation material is only suitable if its documented performance aligns with the applicable specification.

Installation Speed, Fit, and Site Conditions

Fiberglass batts are practical in regular stud bays and open attic areas. Installers know the format, material cost is often favorable, and standard sizes support fast coverage. The quality of installation remains essential. Gaps at electrical boxes, poorly fitted edges, and voids behind batts can reduce real-world performance.

Foam can simplify difficult geometries. Flexible foam sheets and rolls can be cut, laminated, die-cut, or shaped for equipment housings and duct sections. Tubular foam insulation can cover pipe runs with less material handling than a multilayer fiber-and-jacket system. Custom conversion is especially useful when a manufacturer needs repeatable parts rather than hand-cut insulation at the point of assembly.

Spray foam can seal irregular cavities and reduce air leakage, but it requires controlled installation conditions and trained applicators. Rigid board foam requires careful cutting and joint treatment. Flexible foam needs compatible adhesives, tapes, or mechanical fixing methods where appropriate. Every insulation type has an installation discipline.

Cost Should Include the Whole System

Fiberglass often has a lower initial material cost for straightforward residential cavities and large, accessible areas. That can make it the sensible option when moisture exposure is low, depth is available, and the assembly can be installed consistently.

Foam may cost more per unit area, yet provide savings elsewhere. A thinner material can preserve valuable space. Integrated vapor resistance can reduce the number of layers in a technical insulation system. Custom-cut foam components can shorten production time, improve repeatability, and reduce offcuts. In cold-service applications, avoiding condensation damage can matter far more than the initial insulation price.

The practical comparison is not material price versus material price. It is installed cost, expected service life, energy performance, maintenance risk, production efficiency, and compliance.

Choosing the Right Insulation for the Application

Choose fiberglass when you need economical coverage in standard wall, ceiling, or attic cavities; have sufficient depth; and can protect the assembly from moisture. It remains a proven solution for many conventional building applications.

Choose foam when the project needs thin insulation, close conformity to curved or irregular surfaces, better resistance to moisture exposure, controlled condensation performance, or converted parts with defined dimensions. Flexible foam materials are particularly relevant for pipes, ducts, equipment, acoustic-thermal assemblies, and protected technical components.

For a product designer or procurement team, request more than a generic “foam” recommendation. Define the operating temperature, required thickness, exposure to water or humidity, available installation space, required fire documentation, compression demands, surface geometry, and desired finishing method. Material families such as elastomeric rubber foam, expanded polyethylene, and rigid cellular boards solve different problems.

Cioni Foams approaches this question through material function as well as format: thermal behavior, flexibility, density, moisture resistance, and conversion requirements all influence the final selection. A properly specified insulating component should fit the assembly as precisely as it controls heat flow.

The best next step is to assess the actual failure risk in the application. If heat loss is the only concern, several materials may work. If condensation, limited space, irregular geometry, repeated handling, or production consistency are also part of the job, the insulation choice becomes much clearer.
