Foam Lamination Process for Technical Materials

A foam layer can add cushioning, thermal control, sound absorption, spacing, or surface protection to a finished component. The foam lamination process is what allows that layer to become part of a stable, usable assembly rather than a separate material that shifts, wrinkles, or fails under load. For manufacturers, upholsterers, packaging specialists, and product designers, the method chosen affects more than appearance. It influences peel strength, flexibility, emissions, production speed, thickness control, and the final product’s service life.

Lamination is often discussed as a simple bonding operation. In practice, it is a material-engineering decision. Foam type, density, cell structure, facing material, adhesive chemistry, and operating conditions must work together. A bond that performs well in a mattress cover may not be suitable for a marine seat, acoustic panel, automotive interior, or protective packaging insert.

What Foam Lamination Achieves

Foam lamination joins flexible foam to one or more substrates. Those substrates may include fabric, nonwoven material, film, foil, paper, leather, PVC, wood-based panels, rubber, or another foam layer. The result is a composite material designed around a functional requirement.

In upholstery and bedding, laminated foam can provide a softer hand, improve dimensional stability, and prevent cover materials from moving over the padding. In acoustic construction, it can combine sound-absorbing polyurethane foam with a decorative facing or protective backing. In packaging, a laminated surface may improve tear resistance, create a clean presentation, or provide a low-friction contact layer for delicate parts.

The foam is not always selected only for softness. Open-cell polyurethane foams can support airflow, acoustic absorption, and comfort. Closed-cell polyethylene foams can contribute water resistance, buoyancy, impact protection, and insulation. Rubber-based foams may be selected when resilience, grip, or resistance to specific mechanical conditions is required. The laminated construction must preserve the properties that made the foam suitable in the first place.

How the Foam Lamination Process Works

A typical foam lamination process begins with material conditioning and preparation. Rolls or sheets must be clean, dry, correctly aligned, and free from surface contamination. Dust, mold-release residues, moisture, or uneven tension can weaken the bond long before a defect becomes visible on the finished product.

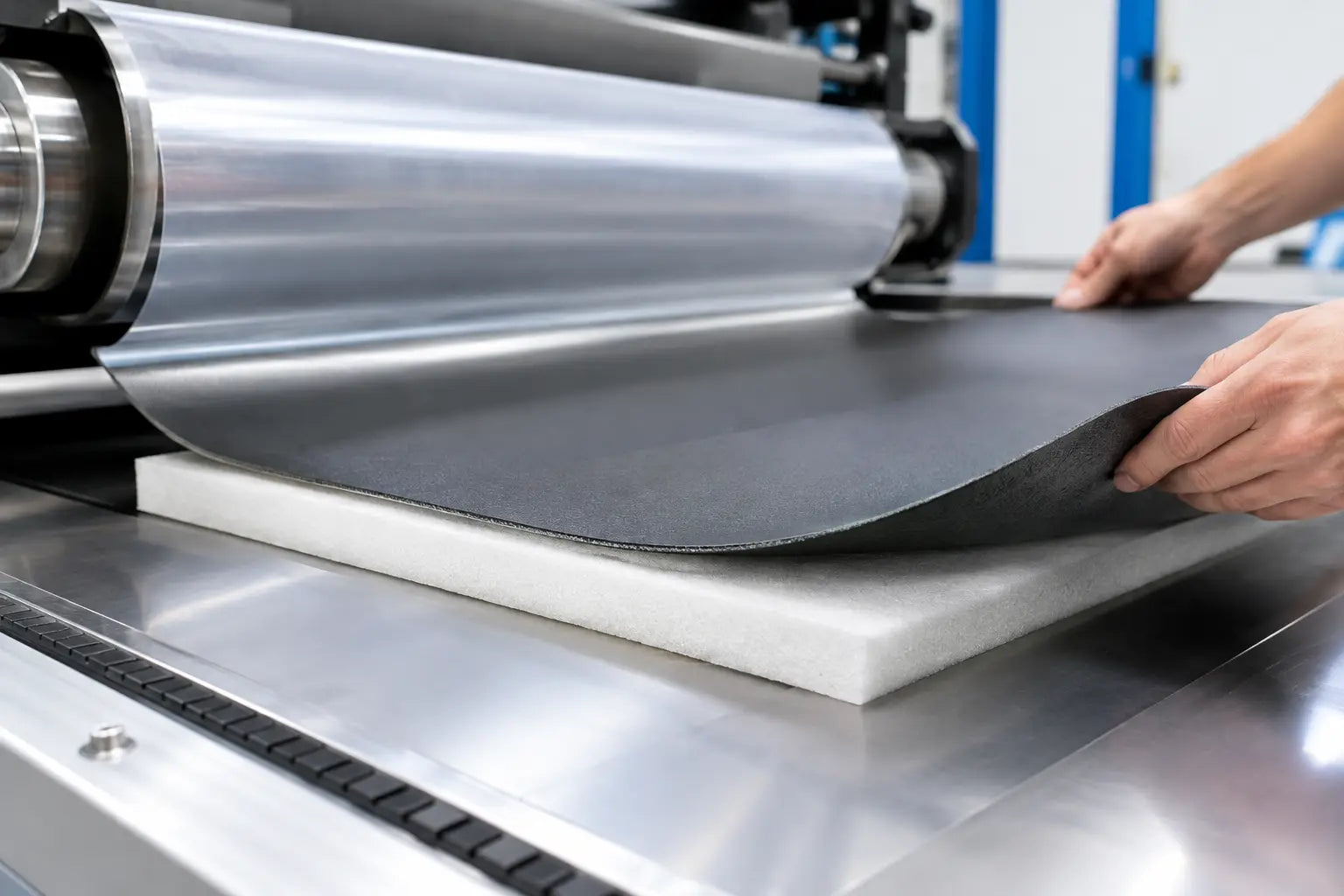

The foam and facing then pass through a laminating line, where the bonding medium is applied or activated. Pressure rollers bring the layers together, while heat, dwell time, and line speed are controlled to produce the required adhesion without crushing the foam or damaging the facing. The laminated material is cooled, stabilized, trimmed, and converted into rolls, sheets, die-cut parts, or shaped components.

The goal is not maximum bond strength in every case. An excessively rigid adhesive layer can reduce stretch and make a soft composite feel board-like. Too much heat can collapse cells, distort a thermoplastic film, or change the surface of sensitive textiles. The right process creates a bond appropriate for the application, not simply the strongest possible bond on a test sample.

Flame Lamination

Flame lamination is commonly used with polyurethane foam. A controlled flame briefly melts the foam surface, and the softened material becomes the bonding medium when pressed against a textile or other compatible substrate. No added adhesive is required in the bond line.

This method can be efficient for high-volume production and can retain a soft, flexible feel. It is often considered for upholstery fabrics, mattress materials, and certain technical textile constructions. However, it requires close process control. Foam formulation, flame exposure, roller pressure, and speed must be matched carefully. Not every foam or facing material is suitable, and the heat involved can limit its use with heat-sensitive substrates.

Adhesive Lamination

Adhesive lamination uses a separate bonding material, such as water-based adhesive, solvent-free adhesive, pressure-sensitive adhesive, or reactive hot melt. The adhesive may be applied by spray, roll coating, slot die, or other controlled methods, depending on the substrate and required coating weight.

This approach offers broad material compatibility. It can be used to bond polyethylene foam to films, foils, fabrics, boards, and other materials that cannot be flame laminated effectively. It also gives converters more control over where adhesive is placed and how much is applied.

The trade-off is that adhesive selection becomes critical. The adhesive must remain flexible where the assembly bends, resist temperature and humidity exposure where required, and meet any applicable odor, emission, or food-contact requirements. Drying or curing time can also affect production planning. A fast line is not automatically more productive if the material cannot be converted safely until the bond has fully developed.

Hot-Melt Film and Web Lamination

Hot-melt films, powders, and adhesive webs create a clean, consistent bond layer. The adhesive is placed between the foam and facing, then activated by heat and pressure. This method is useful when a controlled bond weight, low mess, or precise edge definition is needed.

It can be particularly effective for technical laminates, shaped parts, and applications where spray adhesives would create overspray or inconsistent coverage. The limitation is temperature sensitivity. The activation window must be high enough to melt the adhesive but low enough to protect the foam and the facing material.

Material Selection Comes Before Machine Settings

The most reliable laminated products start with a clear performance target. A procurement specification that simply calls for “foam bonded to fabric” leaves too much open to interpretation. Thickness, density, cell structure, compression behavior, backing material, bond type, and expected environment should all be considered.

For example, a 1/4-inch open-cell foam laminated to fabric for a decorative acoustic panel may prioritize visual quality and air permeability. A closed-cell polyethylene foam bonded to aluminum foil for insulation may prioritize moisture resistance and thermal performance. A packaging laminate may need clean cutting and resistance to repeated handling, while a sports mat may need a durable skin, reliable bond, and repeated flex performance.

Density alone does not define performance. Two foams with similar density can differ substantially in firmness, tensile strength, elongation, cell structure, and aging behavior. The same applies to facings. A knit fabric stretches differently from a woven textile, and a smooth film may require a different adhesive strategy than a porous nonwoven.

Cioni Foams approaches these decisions through material families and conversion requirements together, helping buyers move from the required outcome - comfort, protection, acoustic control, drainage, or insulation - to a workable foam composite.

Specifying a Foam Lamination Process

A useful specification identifies both the product and the conditions it must withstand. Start with the intended use: indoor furniture, marine seating, construction insulation, automotive trim, medical positioning, protective packaging, or consumer goods. Then define the mechanical demands, including compression, flexing, abrasion, peel forces, and handling frequency.

Environmental exposure matters just as much. Heat, cold, humidity, water, oils, UV exposure, and cleaning agents can affect both foam and adhesive. For a product used outdoors or in a marine environment, water exposure and hydrolysis resistance may govern the material choice. For interior acoustic applications, flame behavior, odor, and surface appearance may take priority.

Sample trials are valuable because laminated materials are tactile and application-specific. A bond can pass a laboratory peel test yet still be unsuitable if it creates a hard hand, telegraphs through a thin fabric, or causes difficulty during sewing, die cutting, thermoforming, or installation. Testing should reflect actual use whenever possible.

Quality Checks That Prevent Field Failures

Quality control begins at incoming inspection and continues through conversion. Foam thickness and density should be checked against tolerance, while the facing material should be reviewed for surface consistency, coating compatibility, and roll tension. During lamination, operators monitor adhesive coverage or flame exposure, nip pressure, line speed, alignment, and temperature.

Finished material should be evaluated for bond uniformity, bubbles, wrinkles, delamination, foam compression, and edge quality. Peel testing is useful, but it should be paired with flex testing, aging tests, and environmental exposure when the application demands it. A packaging insert, for example, may need repeated compression testing. An insulation laminate may need dimensional stability after thermal cycling.

Traceability also matters for professional supply. Recording material batch, adhesive system, process conditions, and inspection results makes it easier to investigate a problem and maintain consistent output across repeat orders.

The best laminated foam is rarely the one with the most complex construction. It is the one whose foam, facing, and bonding method are matched to the real conditions of use, then converted with enough control to keep that performance consistent from the first sheet to the final part.
