How to Specify Foam Filtration Media Correctly

A filter can fail long before it looks worn out. Restricted flow, channeling, particle breakthrough, and chemical attack often begin with an unsuitable material specification rather than a visibly damaged component. Foam filtration media gives designers and maintenance teams a versatile way to capture contaminants while managing flow, cleanability, and component geometry. The right grade is not simply the finest foam available. It is the material that delivers the required filtration result without creating excessive pressure drop or premature replacement cycles.

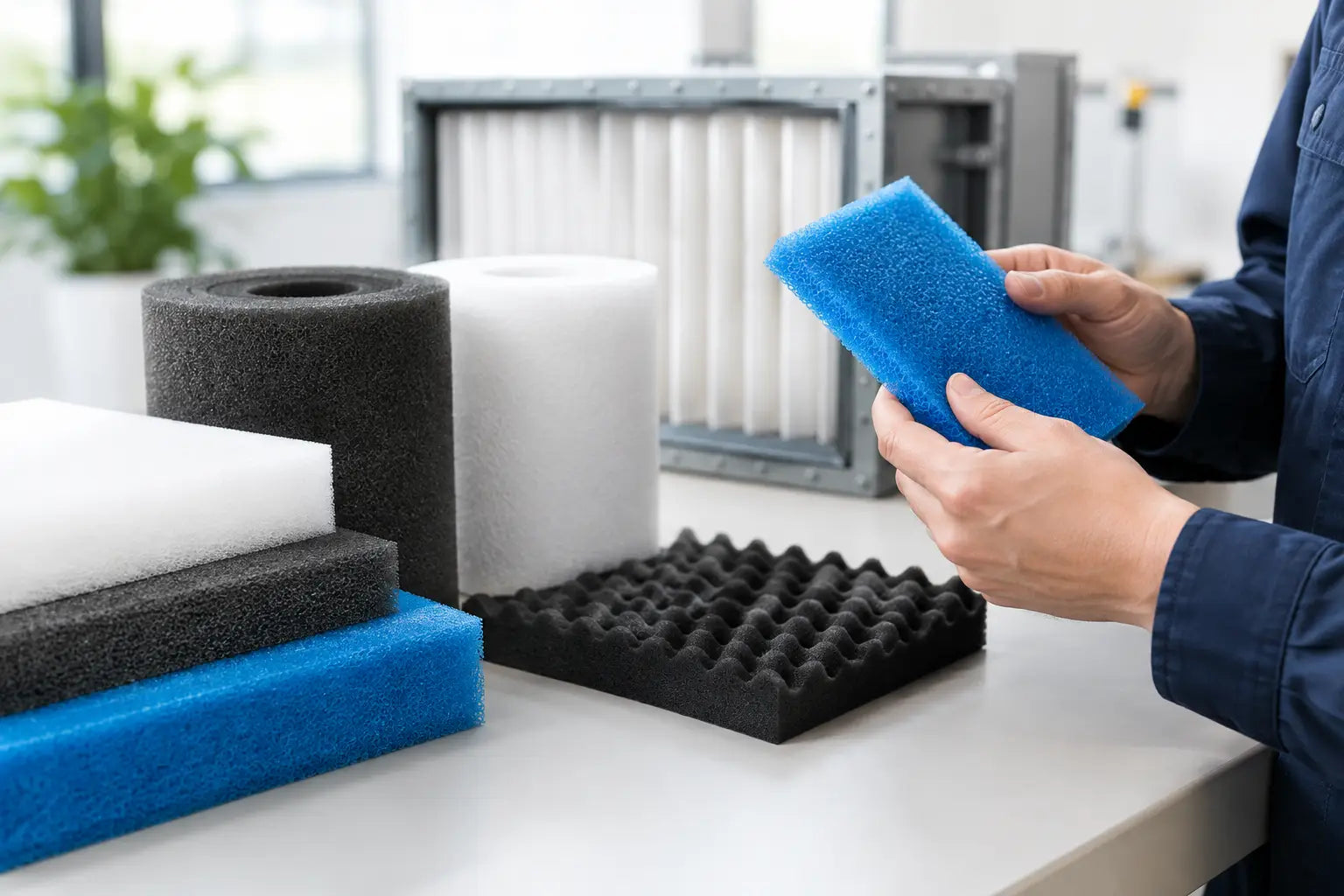

For air, water, process fluids, automotive systems, appliances, and industrial equipment, open-cell foam can be converted into sheets, rolls, pads, inserts, sleeves, and custom-cut parts. Its three-dimensional cellular structure provides a controlled path for fluid or air to pass through while retaining particles within and across the material. The details of that structure determine whether the filter performs as intended.

What Foam Filtration Media Does

Foam filtration media is generally an open-cell flexible foam engineered for permeability. Unlike a flat screen that mainly captures particles on its surface, reticulated foam has interconnected cells that allow contaminants to be collected through the depth of the material. This depth-filtration behavior can improve dirt-holding capacity and extend service life when the media is correctly matched to the application.

The material can act as a primary filter, a pre-filter protecting a finer downstream element, or a support layer within a multilayer filtration assembly. In many systems, foam is selected because it combines low weight, easy conversion, resilience, and a broad range of pore structures. It can also be cut to complex shapes that are difficult or costly to produce using rigid filter media.

Performance depends on more than particle capture. A filtration component must maintain usable flow, tolerate contact with the filtered medium, fit the housing without bypass, and withstand cleaning or handling where reuse is required. A foam that filters efficiently but collapses, swells, sheds, or restricts flow is not a successful specification.

Start With the Operating Conditions

The most useful first question is not, “What pore count should I buy?” It is, “What must this filter accomplish in the actual system?” Define whether the medium will process air, water, oil, coolant, cleaning solution, or another fluid. Temperature, chemical exposure, flow direction, operating pressure, moisture level, and contamination type all influence material selection.

Air filtration often prioritizes airflow, dust loading, and the ability to trap lint, fibers, or larger airborne particles. Water and liquid applications may require a foam that resists hydrolysis, retains its structure when wet, and can be cleaned or replaced without distortion. Oil and solvent environments require particular care because a foam that performs well in water may soften, swell, or degrade in contact with hydrocarbons or aggressive chemicals.

The particle profile matters as much as the medium. Fine, uniform particulate behaves differently from coarse debris, hair, fibers, sludge, or irregular fragments. A system dealing with large contaminants may need an open pre-filter to prevent rapid surface loading. A system requiring finer capture may use staged filtration, beginning with a coarse foam layer and progressing to a more restrictive medium downstream.

Pore Size, Porosity, and Pressure Drop

Pore size is commonly expressed in pores per inch, or PPI. Lower PPI grades have larger openings and generally allow higher flow while capturing larger particles. Higher PPI grades have smaller cells and can retain finer contamination, but they also increase resistance to flow and may load more quickly in dirty conditions.

There is no universal “best” PPI. A coarse foam can be the correct choice for pre-filtration, intake protection, drainage, or applications with high contaminant loads. A finer foam may be appropriate where particle control is more demanding and the system can tolerate the resulting pressure drop. The goal is to balance capture efficiency against flow capacity over the expected service interval, not only when the filter is brand new.

Thickness changes the equation. Increasing thickness gives contaminants more depth in which to collect and can improve holding capacity. At the same time, more material can add resistance. A thinner fine-pore foam and a thicker coarse-pore foam may produce very different performance even when they are intended for similar particle sizes. Testing the full converted part, not just a raw material sample, is the reliable way to confirm the result.

Do Not Specify by PPI Alone

PPI is a valuable starting point, but it does not describe every property that affects filtration. Foam density, cell uniformity, compression set, tensile strength, permeability, and surface condition can influence real-world behavior. Two materials with a similar nominal pore count may not provide identical flow rates or contaminant retention.

For critical applications, specify measurable performance requirements alongside pore structure. These may include initial pressure drop at a defined flow rate, allowable pressure drop at replacement, target particle range, fluid compatibility, operating temperature, thickness tolerance, and required service life. This gives purchasing teams and converters a specification that can be verified rather than interpreted.

Select the Polymer for the Environment

Polyether and polyester polyurethane foams are both widely used in filtration, but they are not interchangeable. Polyether foam is frequently selected for its resistance to hydrolysis and its suitability in humid or water-contact environments. Polyester foam can offer favorable strength and abrasion characteristics, depending on the formulation and end use.

The correct choice depends on the chemical environment, mechanical stresses, and required lifespan. Exposure to oils, fuels, detergents, solvents, ozone, heat, or outdoor conditions should be considered early. If the application includes food handling, medical use, or other regulated conditions, the specification must also identify the relevant compliance requirements instead of assuming that a standard foam grade is suitable.

Material behavior at the edges deserves attention. A filter insert may be compressed into a housing, bonded to a frame, heat-sealed, or repeatedly removed for washing. The foam must retain its shape and create a reliable seal without closing its cell structure. Excessive compression can reduce effective permeability, while an undersized part can permit bypass around the filter rather than through it.

Convert the Media Into a Functional Filter Part

Raw foam is only the starting point. Conversion determines whether the material becomes a dependable component. Precision cutting supports consistent fit in housings, ducts, tanks, and equipment panels. Die-cut shapes, profiled pads, cylindrical forms, and laminated constructions can be designed around the actual flow path rather than forcing the system to accommodate a standard rectangle.

For reusable filters, consider how the part will be cleaned. Open-cell structures can release captured contaminants during rinsing or washing, but results depend on the contaminant type and the cleaning method. Greasy soils, sticky residues, and embedded fine particles may be difficult to remove completely. A washable label should therefore reflect proven cleaning performance, not just the fact that the foam survives contact with water.

Layered assemblies are often the practical answer where one material cannot deliver every requirement. A coarse upstream layer can distribute flow and capture larger debris, while a finer downstream layer provides additional filtration. Support scrims, frames, adhesives, or sealing gaskets may be added where handling strength and bypass control are essential. Each added layer introduces a trade-off in airflow, cost, and assembly complexity.

Validate Performance Before Full Production

A sample can confirm texture and fit, but it cannot predict service life on its own. Representative testing should reflect the actual fluid, expected contaminant loading, working temperature, housing geometry, and operating flow. Measure pressure drop when clean, then monitor how it changes as the filter loads. Check for deformation, bypass, shedding, odor, discoloration, or chemical change after exposure.

For recurring production, define practical acceptance criteria. Thickness and dimensional tolerances matter, particularly for compressed seals or tightly fitted cartridges. Consistent pore structure, lot traceability, packaging protection, and reliable conversion also contribute to repeatable filter performance. Cioni Foams can support this process by combining material selection with custom conversion for the required component format.

The best filtration specification gives the system enough protection without asking the pump, fan, or operator to compensate for an overly restrictive filter. Begin with the contaminant, fluid, and flow conditions, then verify the finished part under realistic use. That approach turns foam from a generic consumable into a controlled filtration component built for its job.
