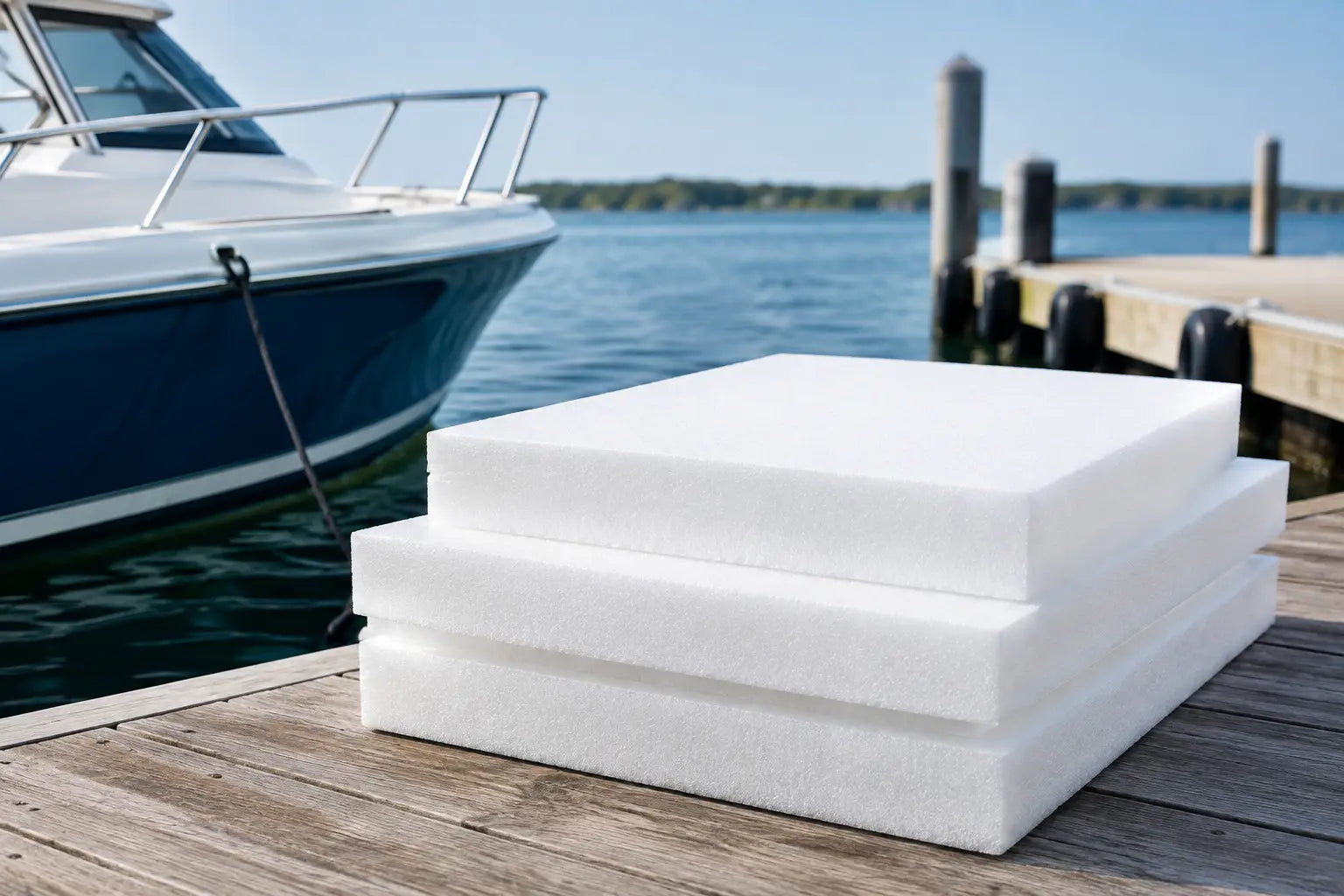

Marine Flotation Foam for Boats and Docks

A foam block below a deck, inside a dock float, or built into a seat base has one job when conditions deteriorate: retain enough buoyancy to support the intended load. Marine flotation foam is therefore not simply a lightweight filler. Its cell structure, density, water uptake, shape, installation method, and long-term exposure to fuel, saltwater, sunlight, and mechanical stress all affect real performance.

For boatbuilders, dock fabricators, repair professionals, and equipment designers, the right specification begins with the application. A foam that performs well as removable deck padding may be unsuitable as permanent reserve flotation. Likewise, the most buoyant material is not automatically the best choice if the component must withstand repeated impact, fit an irregular cavity, or remain stable through seasonal temperature changes.

What Marine Flotation Foam Must Do

Flotation foam displaces water. The volume of displaced water creates an upward force, while the foam itself, the vessel or structure, passengers, equipment, and retained water create downward weight. The design objective is to maintain positive buoyancy with a realistic safety margin, not merely to make a component feel light.

In marine use, closed-cell foam is commonly selected because its individual cells resist water entry. If the material is cut, compressed, or locally damaged, the surrounding closed cells can still retain air and preserve much of the foam's flotation function. Open-cell materials, by contrast, readily absorb and retain water. They are useful for drainage, filtration, cleaning, and comfort applications, but they are generally not the material of choice for installed buoyancy volume.

A suitable marine material also needs to resist the conditions around it. It may be exposed to splash, humidity, condensation, salt, cleaning chemicals, vibration, abrasion, and contact with fiberglass, sealants, or painted surfaces. Where foam is visible, UV exposure becomes another factor. Where it is enclosed, trapped moisture and poor drainage can become the greater concern.

Closed-Cell Materials and Their Trade-Offs

Cross-linked polyethylene foam is widely used in marine fabrication because it combines low water absorption with a clean, consistent cell structure. It can be supplied in sheets, blocks, rolls, or converted parts, making it practical for flotation inserts, buoyancy modules, protective linings, seating components, and equipment cases. Its firmness and density can be selected for the required balance of buoyancy, compression resistance, and handling.

Expanded polyethylene is another useful option when a project requires lightweight closed-cell foam and efficient conversion into larger shapes. Material selection depends on density, cell structure, intended loading, and whether the foam will be bonded, mechanically retained, or used as a removable component. A lower-density grade may maximize flotation per unit weight, but it can be more vulnerable to compression or damage in high-load locations.

EVA-based closed-cell foam can offer improved flexibility, cushioning, and surface durability in applications such as marine decking, protective pads, seating details, and removable accessories. It is often selected when comfort and grip matter alongside water resistance. For permanent flotation cavities, however, the priority should remain verified buoyancy behavior and dimensional stability under the specific service conditions.

Rigid polyurethane flotation systems are also used in certain molded or poured applications. They can fill irregular spaces efficiently, but the project requires closer control of formulation, expansion, adhesion, and cure conditions. Poor installation can create voids, distort surrounding components, or make future inspection difficult. Compatibility with fuels, solvents, and nearby materials must be assessed rather than assumed.

The material category alone never tells the full story. Density, compression characteristics, thickness, cell integrity, and environmental exposure should be specified together.

Calculate Buoyancy Before Selecting Thickness

A flotation calculation should start with weight, not with a preferred foam thickness. Determine the maximum load the foam must support, including the structure, installed equipment, batteries, fuel where relevant, accessories, and the expected water retained after swamping or damage. Then account for the foam's own weight and introduce an appropriate reserve margin.

As a basic physical principle, freshwater provides about 62.4 pounds of buoyant force per cubic foot of displacement, while seawater provides slightly more. The foam occupies part of that volume and has its own weight, so usable flotation is less than the total displacement figure. A practical design should be based on the conservative operating environment and the finished assembly, not on an idealized dry sample.

For regulated vessels or safety-critical applications, applicable US Coast Guard requirements, vessel standards, and project-specific engineering rules must guide the final design. Foam suppliers can provide material information, but compliance depends on the complete vessel construction, distribution of flotation, installation quality, and intended service category.

Buoyancy placement matters as much as buoyancy volume. Foam concentrated in one area may keep an object afloat but allow it to list, overturn, or float too low at one end. Distributed flotation can improve stability and support a more predictable attitude in the water. In a boat, access panels, stringers, wiring routes, drainage paths, and inspection needs must be considered before cavities are permanently filled.

Marine Flotation Foam Installation Details

A strong material choice can be undermined by poor conversion or installation. Foam should be cut accurately enough to avoid excessive gaps, but it should not be forced into a cavity so tightly that it remains under continuous compression. Compression reduces available volume and can alter the foam's long-term shape.

When bonding is required, use an adhesive system compatible with both the foam and the substrate. Some solvents can attack foam, weaken cell walls, or create an unreliable bond. Mechanical containment, shaped cavities, straps, and retainers may be preferable where removal, inspection, or replacement is necessary.

Drainage deserves particular attention. Closed-cell foam does not eliminate water-management issues in a hull, dock component, or equipment enclosure. Water can still collect around the foam, freeze in cold climates, contribute to corrosion, or remain trapped against adjacent materials. Design drainage channels and access routes so that standing water can be identified and removed.

For exposed foam, consider abrasion, UV stabilization, and surface protection. A removable cover, laminated facing, or protective skin may extend service life where gear, footwear, or dock hardware repeatedly contacts the material. Any facing must be evaluated for its impact on flexibility, bonding, drainage, and inspection.

Specify the Foam by Function, Not by Name Alone

A productive specification identifies the application and the performance target. Instead of requesting generic “boat foam,” define whether the material is intended for under-deck reserve flotation, dock float protection, buoyant equipment, removable seating, impact protection, or a combined flotation-and-cushioning component.

Then establish the main decision criteria: required dimensions, density range, target buoyancy, compression loading, water exposure, temperature range, chemical contact, surface finish, fire-performance needs where applicable, and conversion requirements. Water-jet cutting, die cutting, contouring, lamination, adhesive backing, and custom fabrication can turn a sheet material into a part that installs faster and performs more consistently.

This approach is particularly valuable for irregular compartments. A custom-cut flotation set can use available volume efficiently while preserving service routes and drainage. It also reduces the temptation to pack cavities with unsuitable offcuts, mixed materials, or foam that has unknown water-resistance characteristics.

At Cioni Foams, material conversion expertise supports this kind of application-led selection, from closed-cell foam formats to custom components designed around the geometry of the finished product. The objective is not to add foam wherever space is available. It is to engineer useful flotation volume that fits the assembly, the environment, and the production process.

Inspection and Replacement Planning

Marine foam is often installed where it is hard to see, which makes upfront planning more valuable. Where possible, create access for visual inspection and document the material type, thickness, density, and installation date. This simplifies repairs and avoids uncertainty if a vessel is modified years later.

Replacement should be considered when foam is visibly crushed, contaminated, brittle, permanently distorted, or repeatedly saturated due to damaged cell structure or an installation issue. A damp compartment does not automatically mean closed-cell foam has failed, but it does justify investigating the water source and checking whether the foam remains dimensionally sound.

The best marine flotation foam is the material that delivers predictable buoyancy in the actual space available, while tolerating the mechanical and environmental demands around it. Start with the load calculation, protect the cell structure during conversion and installation, and leave a path to inspect what is designed to keep working out of sight.
